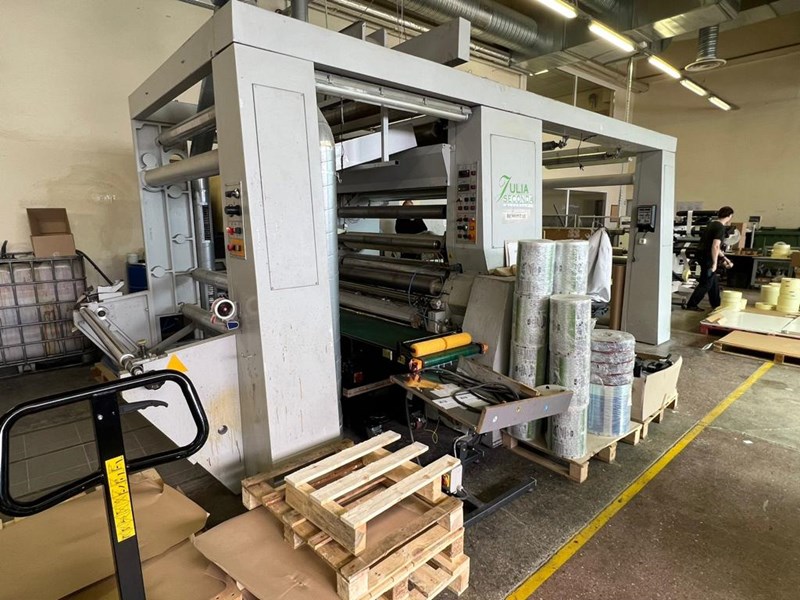

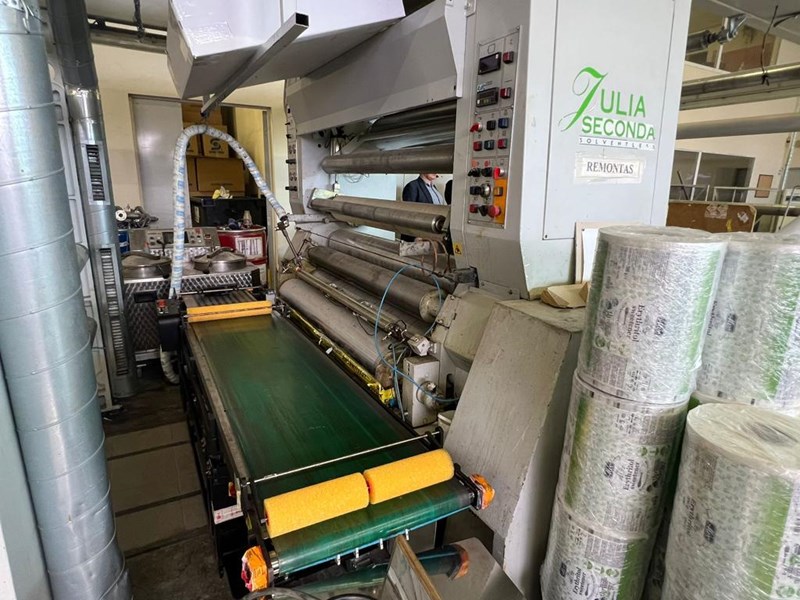

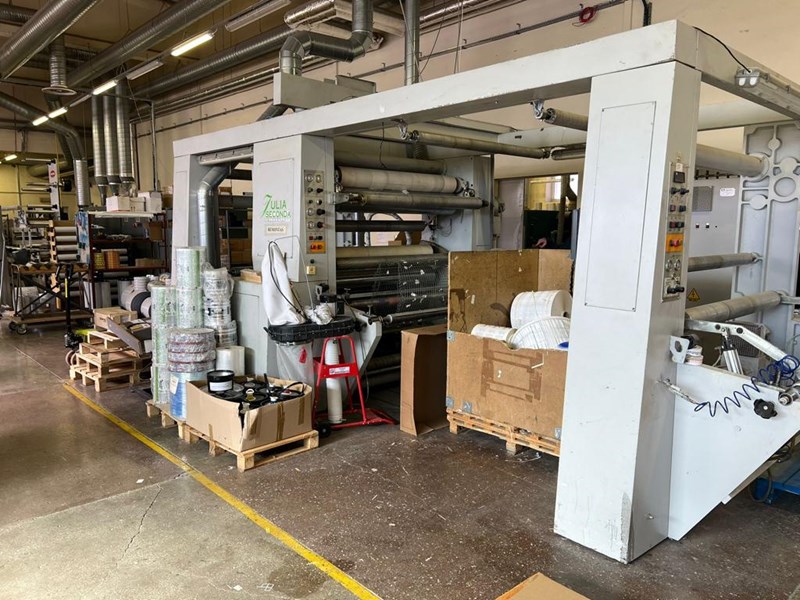

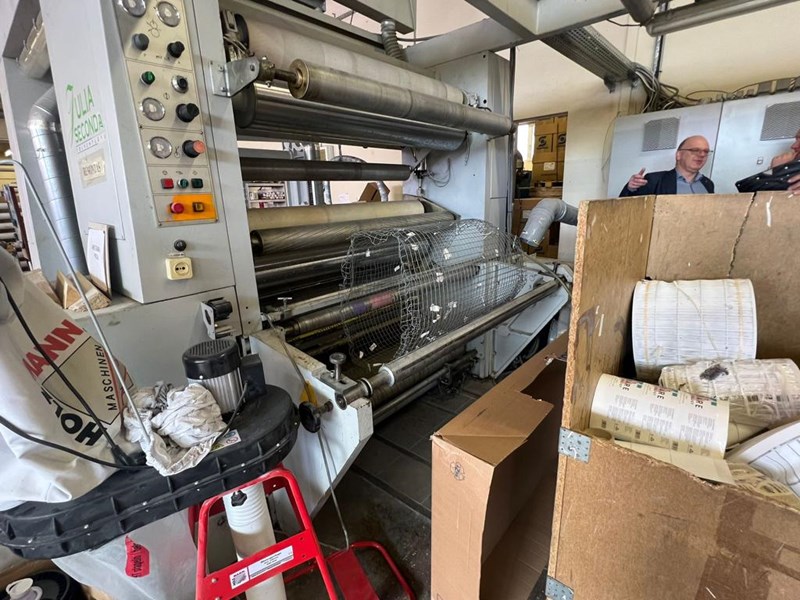

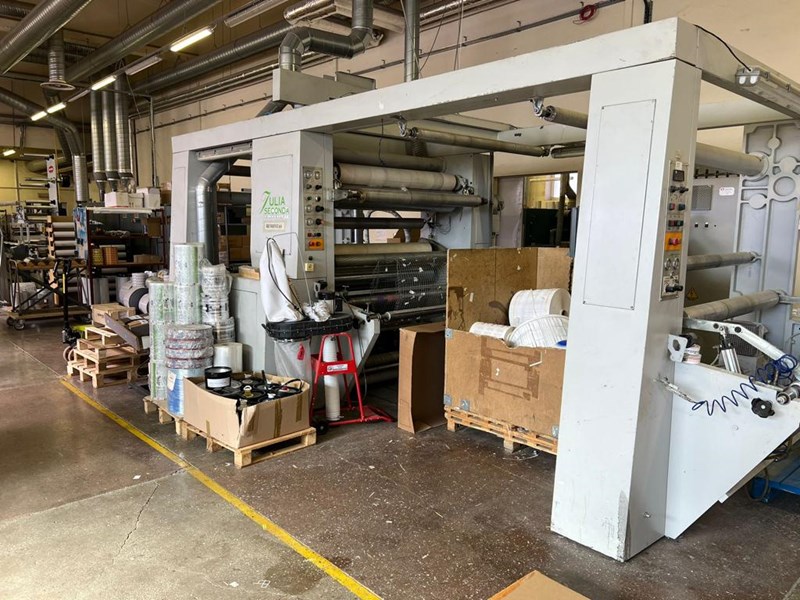

The main units of solventless laminator include: – two unwinders – equipped with unwinding electromagnetic brakes with air cooling and web tension control device. inner unwinder is equipped with the side-lay control device. Maximum diameter of unwinding reels 1000mm – Re-winders – equipped with DC motor and web tension controller. Maximum diameter of rewinding reels 1000mm. – Adhesive station – AC motor on the crankshaft for the fine adjustment of glue application on the material – Laminating unit
– Maximum material width-1600mm – Maximum laminating width-1400mm – Maximum speed- 270 m/min Equipped with two chillers to heat the shaft on site of coating and laminating units. Dimensions: width 2770 mm, length 6040 mm, height 2510 mm
BI-COMPONENT SOLVENTLESS ADHESIVES MIXER MATRIX M-5 (Year of production 2011) – Equipped with a touchscreen display for convenience of use – Capacity – 2.3 l/min – Additionally completed with two pumps for the components’ intake from the tanks 200 kg and 1000kg – Dimensions: width 800 mm, length 1150 mm, height 1100 mm
